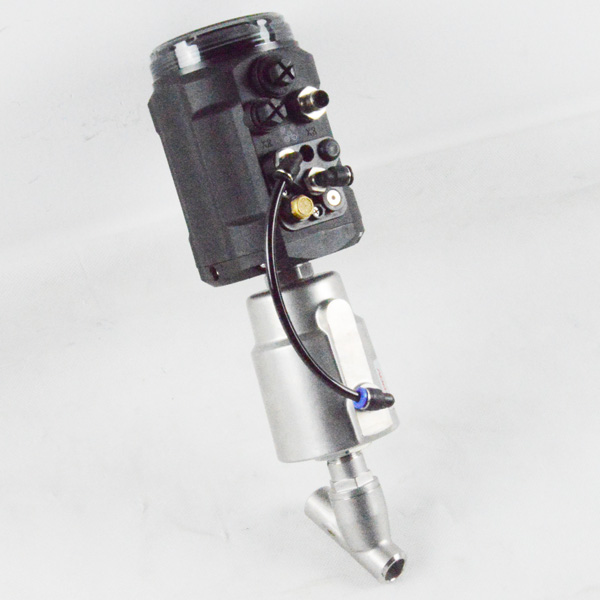

Welding Stainless steel pneumatic angle seat valve 4-20MA

Description The Welding Stainless steel pneumatic angle seat valve 4-20MA operates as an economical valve solution which delivers extended service life and safe operation and requires no maintenance for its spring-loaded packing system with intermediate relief and wiper. The valve includes self-aligning PTFE seal/plug technology with standard optical position indication and it offers low lifecycle expenses. The valve body consists of SS304 and SS316 and SS316L materials while the stem uses identical materials. The pneumatic actuators use PA or stainless steel materials based on application needs and the seat material consists of PTFE. The valve operates at 16bar pressure while working within PA temperature range -40 °C to 60 °C and stainless steel range -40 °C to 80 °C with neutral gases or air as control medium. The Y-type body design of this valve makes it suitable for handling water and alcohol and oils and fuel and salt solutions and alkali solutions and organic solvents and steam at 150 PSI / 365. The Welding Stainless steel pneumatic angle seat valve 4-20MA operates optimally with Pneumatic Actuator Control options including double acting and single acting normally closed and single acting normally open and additional accessories like solenoid valve and limit switch box and filter and E/P positioner and hand wheel. 1.High cycle life 2.Cost effective ball valve alternative 3.High operating safety: 4.Maintenance–free spring loaded packing with intermediate relief and wiper Self aligning PTFE seal/plug Optical position indication standard 5.Cost–savings in operation due to minimized control air consumption 6.Low Lifecycle costs Description Body: SS304,SS316,SS316L Stem: SS304,SS316,SS316L Pneumatic actuators:PA, stainless steel Seats: PTFE Ends: welding Pressure:16bar Air pilot pressure:0.6Mpa Size: 3/8″ – 4″ (10mm – 100mm) Ambient temperature: PA: -40 °C to 60 °C ; stainless steel: -40 °C to 80 °C Control medium:Neutral gases, air Temperature range: -40 °C to 180 °C (depending on pressure, medium and material) Body style: Y type Applications: Water, alcohol, oils, fuel, salt solution, alkali solutions,organic solvents,steam at 150 PSI / 365 Pneumatic Actuator Control: Double acting, Single acting normally closed Single acting normally open Pneumatic accessories: Solenoid valve, limit switch box , filter, E/P positioner, hand wheel
