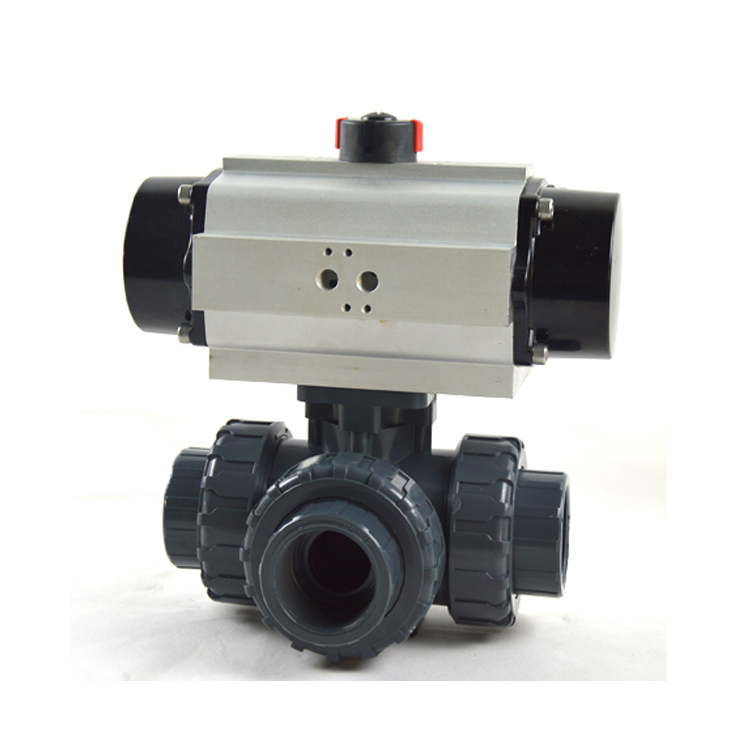

Pneumatic 3 Way Pvc Ball Valve

Description Pneumatic 3 Way Pvc Ball Valve Pov valve offers the Pneumatic pvc 3 way ball valve which features direct mounting and operates with 1/2” to 2” full port sizes and uses pvc-u material for the body structure and PTFE for the seats. The valve exists in two configurations: L-port and T-port with PN16 pressure rating. The pneumatic actuator operates between 10Nm to 8000 Nm output torque while users can select from three control options: double acting and single acting normally closed and single acting normally open. The product range includes solenoid valves and limit switch boxes and filters and E/P positioners and hand wheels as additional accessories. The ball valve features two adjustable travel stop screws and an output shaft cam which enables precise bidirectional control during open and close operations while its anodized aluminum body with polyester coated end caps provides excellent corrosion resistance. The 3 way ball valve pvc serves both on/off and throttling needs as its ideal solution. Description 3-way Screw End Ball Valve, Direct Mounting Type 1/2” ~ 2” Full Port Body: pvc-u Seats: PTFE Ends: BSP, BSPT, NPT, DIN, ISO, Double connection Available in L-port or T-port Pressure: PN16 Pneumatic Actuator Output Torque 10Nm to 8000 Nm Control: Double acting,Single acting normally closed, acting,Single normally open Pneumatic accessories: Solenoid valve, limit switch box , filter, E/P positioner, hand wheel All double acting and spring return units are suitable for both on/off and throttling applications. Actuators which can be actuated with other media such as hydraulic oil or water are also available as an option. 1, Two independently adjustable travel stop screws and a cam on the output shaft to permit precise bidirectional adjustment of movement in both the open and closed positions for quarter turn valves ( 5° to -5° limit adjustment) 2, Integral porting 3, Standard units have anodized aluminum bodies with polyester coated end caps. 4, Special coatings and materials available for corrosive environments 5, NAMUR accessory compatible Three way L type flow diagram Three way T type flow diagram FAQs 3-way PVC ball valve flow direction The 3-way PVC ball valve comes in T-type and L-type configurations to offer flexible flow control solutions. The product design enables easy adaptation to reach desired flow directions which makes it suitable for your specific requirements. Three way L type flow diagram Three way T type flow diagram What are the materials of 3-way PVC ball valve? Select high-quality 3-way plastic ball valves which come in CPVC, UPVC, PVDF and other premium materials. The valves provide dependable operation and extended service life for every application.
