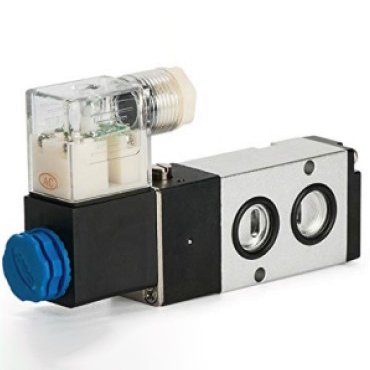

5/2 Way Namur Type Solenoid Valves (4M Series)

Phoenix-5/2 Way Namur Type Solenoid Valves (4M Series) Description Phoenix 5/2 Way Namur Type Solenoid Valves "4M Series" are designed for compact and efficient control of fluid flow in pneumatic systems. These valves feature a Namur interface, making them ideal for mounting directly on cylinders or actuators for streamlined operation. Applications These solenoid valves are used for controlling double-acting cylinders, facilitating direct mounting on pneumatic components, enabling quick switching between flow paths, and supporting efficient automation in various industrial applications. Physical and Technical Specifications Type 4M Series Valves Material Aluminium Structure Type 5 ports / 2 positions (5/2) Solenoid Single Applicable Fluid Dry, Filtered, Compressed Air Pressure Range 0.15-0.8 MPa (1.5-8 bar) Operation Type Internal Pilot Max. Action Frequency 5 cycles / sec Lubrication Not Required Working Temperature -5-50°C Download Catalog   Please select the item size (Qty – Pcs)
