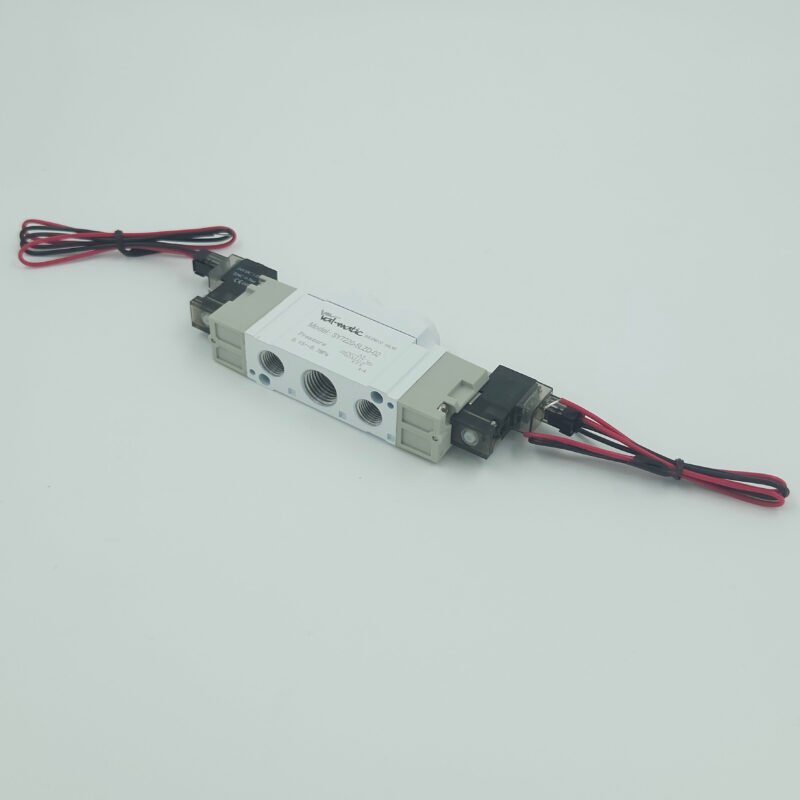

5/2 Way Single & Double Solenoid Valves (SY Series)

Phoenix-5/2 Way SMC Type Single & Double Solenoid Valves (SY Series) Description Valmatic 5/2 Way Single and Double Solenoid Valves "SY Series" are designed for efficient control of fluid flow in pneumatic systems. These valves are compatible with pneumatic configurations, providing versatility and reliability in various applications. Applications These solenoid valves are used for controlling double-acting cylinders, facilitating automation in pneumatic systems, enabling quick switching between multiple flow paths, and supporting efficient operation in diverse industrial settings. Physical and Technical Specifications Type SY Series Valves Material Aluminium Structure Type 5 ports / 2 positions (5/2) Solenoid Single / Double Applicable Fluid Dry, Filtered, Compressed Air Pressure Range 0.1-0.8 MPa (1.0-8 bar) Operation Type Internal Pilot Max. Action Frequency 50 cycles / sec Lubrication Not Required Working Temperature -5-50°C Download Catalog   Please select the item size (Qty – Pcs)
