Standard Cylinders – Double-Acting (SC Series)

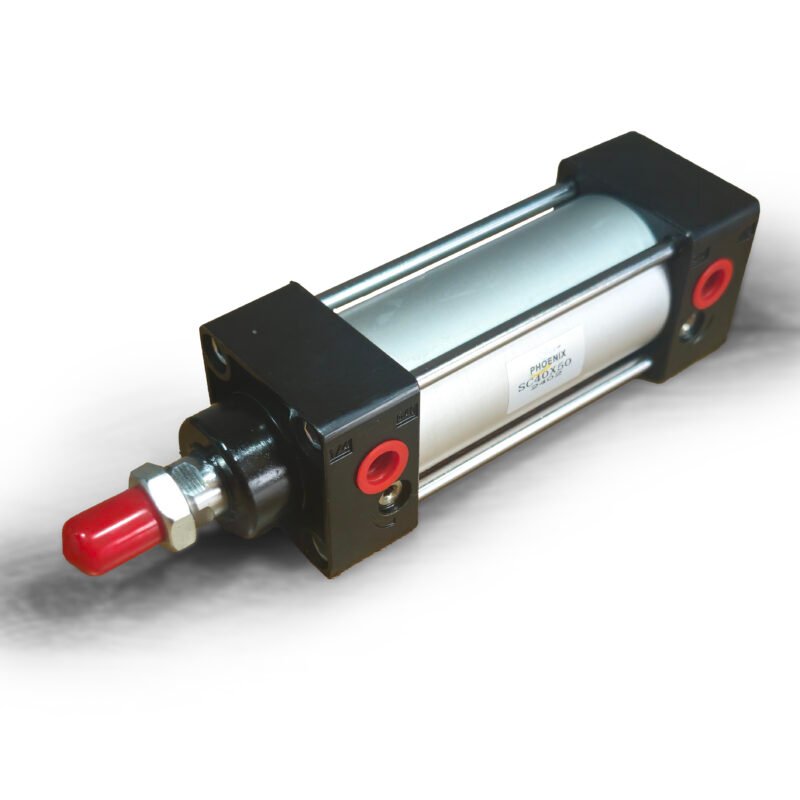

Phoenix – Standard Cylinders – Double-Acting (SC Series) Descriptions Phoenix Double-Acting Standard Cylinders "SC Series" are designed for efficient and reliable operation in pneumatic systems. These cylinders provide double-acting functionality, delivering power in both directions for consistent performance in a wide range of applications. Applications These cylinders are used for linear motion in automation systems, provide precise control in pneumatic operations, facilitate force generation in both directions, and support high-efficiency motion control in machinery. Physical and Technical Specifications Type SC Cylinder Action Type Double Acting Magnetic Type Non-Magnetic (Magnetic available on request) Working Medium Clean, Filtered Air Operating Pressure 1-9 bar (0.1-0.9 MPa) Proof Pressure 13.5 bar (1.35 MPa) Working Temperature 5-70°C Speed Range 50-800 mm/sec Cushion Type Variable Adjustable Cushion Stroke (mm) 20-26 mm Port Size R1/8 - R1/2 (Based on Bore Size) Download Catalog   Please select the item size (Qty – Pcs)
