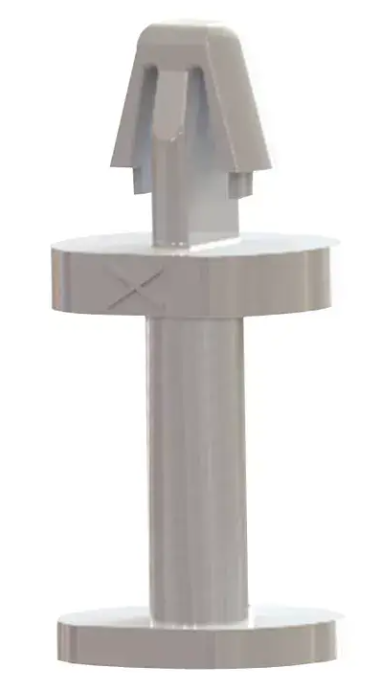

PSD-12M-01 Snap Lock Support 12.0 mm PA UL94 V-2 Natural Pack of 1,000

The Essentra Components PSD-12M-01 Snap Lock Support is a versatile, push-fit PCB support designed to securely mount printed circuit boards (PCBs) without the need for screws or tools. Made from durable nylon 6/6, this self-retaining spacer offers quick installation with a locking mechanism that firmly holds both the board and the chassis. Ideal for electronics assembly, prototyping, and automated production lines, the PSD-12M-01 provides reliable, non-conductive PCB support for industrial and commercial electronics.�� Specifications:Part Number: PSD-12M-01Type: Snap Lock PCB SpacerMaterial: Nylon 6/6 (UL94 V-2 rated)Mounting Type: Snap fit into 4.0mm panel holePCB Thickness: Compatible with standard 1.6mm PCBsPanel Mount Hole: 4.0mm diameterSupport Height: 12.7mmColor: NaturalOperating Temperature: -40°C to 85°CRoHS Compliant: YesHalogen Free: Yes✅ PSD-12M-01 PCB spacer Key Advantages:�� Tool-Free Installation – Snap-lock mechanism allows quick, secure mounting without screws or adhesive⚙️ Dual-Locking Design – Locks to both the chassis and PCB for added stability�� Secure PCB Positioning – Prevents movement or vibration damage in sensitive electronics♻️ Lightweight and Non-Conductive – Nylon material offers electrical insulation and is safe for sensitive circuits�� Speeds Up Assembly – Ideal for high-volume production environments and automated lines�� Clean and Reusable – Snap-lock supports are easy to remove and reuse during maintenance or prototyping�� Compliant and Safe – RoHS compliant and halogen-free for use in regulated industriesAll Essentra Component spacers, pilers and PCB supports are available from us. Contact us with your requirements [email protected]
