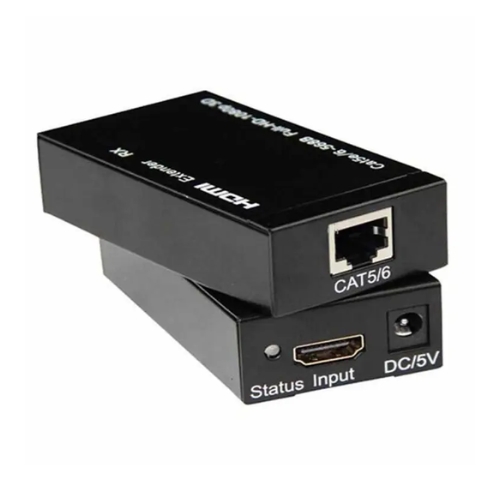

HDMI EXTENDER WITH IR CONTROL
$ 45.99
HDMI EXTENDER WITH IR CONTROL Video Bandwidth: Single-link 165Mhz [ 4.95Gbps] Video Support: 480i/480p/720p/1080i/1080p @60 Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio Transmission Range: HD [1080p 24-bit color] – up to 50m [164ft] Input TMDS Signal: 3.3 volts Input DDC Signal: 5.0 volts/P-P ESD Protection: Human Body model: /- 8 kV (air-gap discharge) /- 4 kV (contact discharge) PCB stack-up: 4 layouts HDMI connector: Type A 19 pin female RJ-45 connector: WE/SS 8P8C 3.5mm connector: (TX and RX) IR Receiver/IR Blaster Housing: Metal enclosure Power Supply: (2) 5V1A DC Power consumption: 2.5 watts (TX); 1.2 watts (RX) Operation temperature: 32~104 °F Storage temperature: -4 ~140 °F Relative humidity: 20~90 % RH (no condensation)
