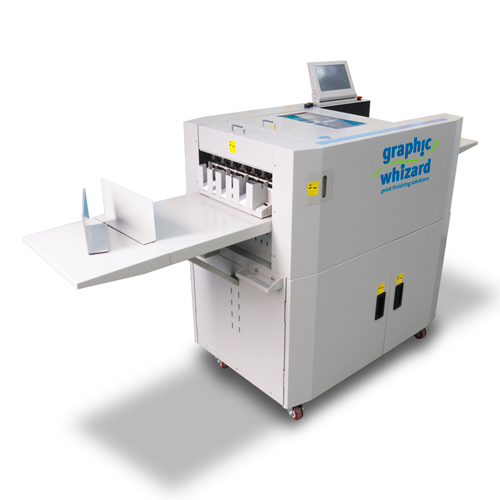

DescriptionPT 8336SCC MultiSlit, Cut, Crease Up/Down, Cross/Rotary/Bi/Strike Perf & ScoreThe PT 8336SCC Multi is a complete full-bleed finishing system designed for the digital marketplace. Equipped with interchangeable creasing/perfing dies, the PT 8336SCC Multi can quickly switch from perfing to creasing to prevent digital toner cracking. Strike perf capability alloys that the PT 8336SCC Multi to do partial perfs in both directions for “T” or “box” perfs.The PT 8336SCC Multi makes short work of; business cards, greeting cards, invitations, brochures, pamphlets, catalogs, posters, book/CD covers, photographs, tent cards, and more by simply loading the high capacity 4” vacuum pile feeder. Processing sheets up to 400 gsm at speeds of 25 sheets per minute (8.5” x 11”, 2 cuts, 1 crease) the PT 8336SCC Multi is an ideal finishing solution to maximize efficiency while minimizing operator intervention.25 sheets per minute8.5” x 11” 2 cuts, 1 crease110-130V, 50/60Hz, 15AMinimum 8.26″ wide x 8.16″ long (20.98cm x 20.72cm)Maximum 13″ wide x 26.5″ long (33.02cm x 67.31cm) 40” handfed (104 cm)Feed Capacity4″Feeder TypeAir suction Pile FeederInput Paper Weight150-400gsmInput Paper Size8.26″ x 8.16″ (20.98cm x 20.72cm)13”x 26.5” (33.02cm x 67.31cm)40” Hand Fed (104cm)Minimum finished cut size1.96″ x 1.89″SpeedUp to 25 sheets per minuteCrease Depth Adjustment5 steps auto adjustCrease Width Options4 .6, 1, 1.2, 1.4 mmCrease DirectionUp or DownNumber of Slitters6, variable guttersIntegrated Conveyor Outfeed OptionYesCut Mark Image Shift CompensationYes (Lead and side)Linear PerforatingYesStrike Perf OptionYesCross PerforatingYesMicro PerforatingYes 24/48 TPICustom Job Memory64Double Sheet DetectYes UltrasonicBar Code Job RecognitionYes9″ Color TouchscreenYesBuilt in Job CreatorYesWarranty3 year parts and electronics
