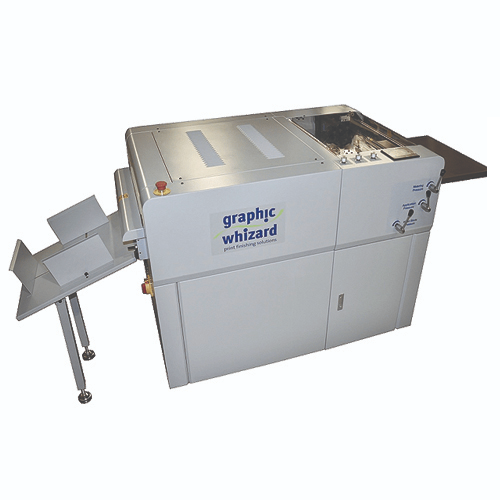

DescriptionVividCoater XDC 370MDesigned with automation in mind. UV CoaterWith a unique 3 pump system the XDC-370M is ideal for those with the need for quick and automatic changeover from one coating to another and allows for automatic clean-up. The XDC370M’s 3 pump system is controlled through the 4” color touchscreen. Place any 2 combinations of gloss, matte, satin or soft touch in 2 of the pails using the 3rd for cleaning solution. Each pump has its own return line reducing contamination between coatings. Other features include a removable applicator roller design, a bank of 3 built-in IR lamps with variable intensity and easy set levers for adjusting substrate thickness, coating thickness and engaging the doctor blade.Variable speedUp to 5,900 sheets per hour208-240V, 1Ph 50/60Hz, 40AMaximum Stock Size: 14.5″W (36.83cm)Stock length is unlimited when hand feeding – standard outfeed tray holds up to 18″ long (45.72cm)Electrical208-240V 1 Phase 50/60Hz, 30ASpeed5,900’ per hour1,800m per hourMaximum Stock Size14.5” W (48 cm)Maximum Stock Weight157-450 gsm*DimensionsLength: 99” (251 cm)Width: 36” (91.5 cm)Height: 36” (91.5 cm)Weight720 lbs (326 kg)Touch ScreenYesBulb TypeUV and IR (3 bulbs)Roller Application3 roller systemVacuum Hold DownYesRoller and Doctor Blade SettingsEasy Set LeversRemovable Roller DesignYesPump StyleThree Peristalic
